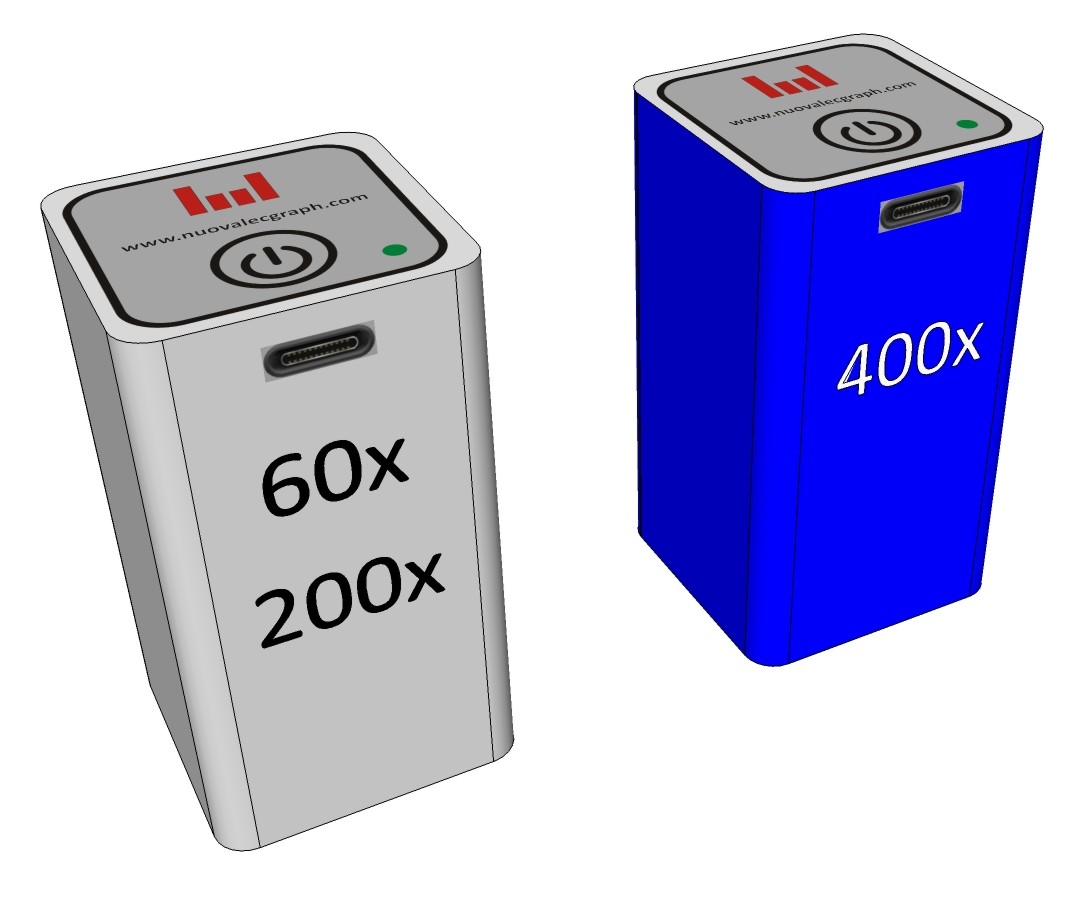

Micro 60÷200x e 400x / Micro 60÷200x & 400x
Caratteristiche tecniche / Technichal characteristics
| Connessione : | Connection : | Wifi con connessione internet
necessaria ( nota 1 ) Wifi with internet connection ( note 1 ) |
| Alimentazione | Power Supply : | Batteria ricaricabile USB / Rechargable battery by USB |
| Area Illuminata ( dipende dal modello ) : | Illuminated Area ( depends of model ) : | Model 1 : 60x ( Area 7 x 3,9 mm
about ) Model 1 : 200x ( Area 2 x 1,1 mm about ) Model 2 : 400x ( Area 1 x 0,5 mm about ) |
| Interfaccia ( nota 1 ) : | Interface ( note 1 ) : | Android Tablet ( note 1 ) or Android Mobile Phone ( note 1 ) |
| Ingrandimento : | Magnification : | Model 1 ( 60 & 200x) , Model 2 ( only 400x ) |
| Dimensioni Meccaniche : | Mechanical dimensions : | 45 mm x 45 mm x 80mm (H) |
| Peso : | Weight : | ~ 160 gr. |
nota 1 / note 1 : Non incluso/i nella fornitura / Not included in the sale

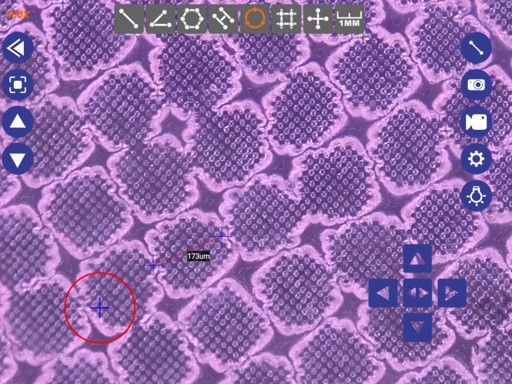

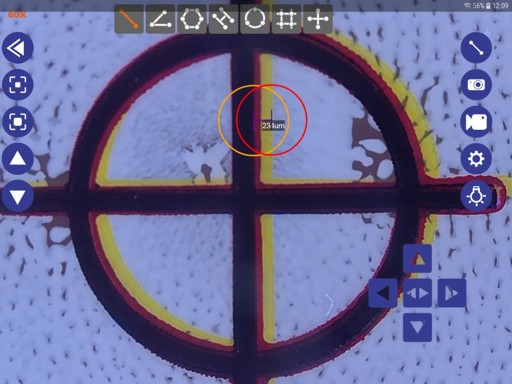

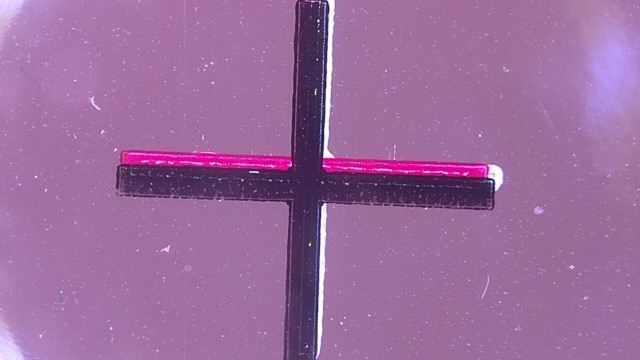

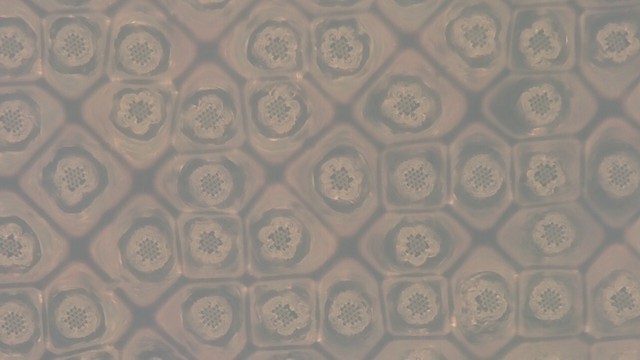

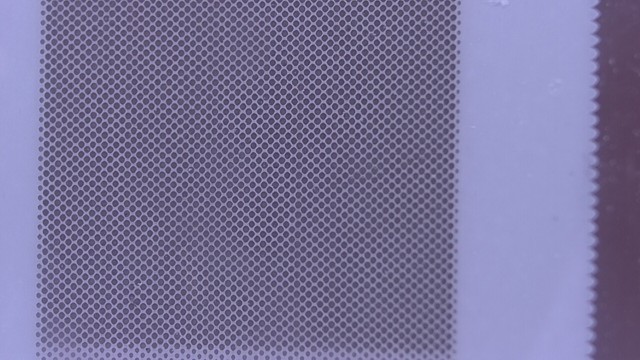

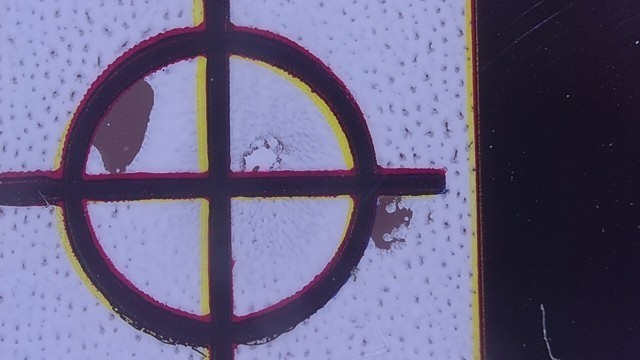

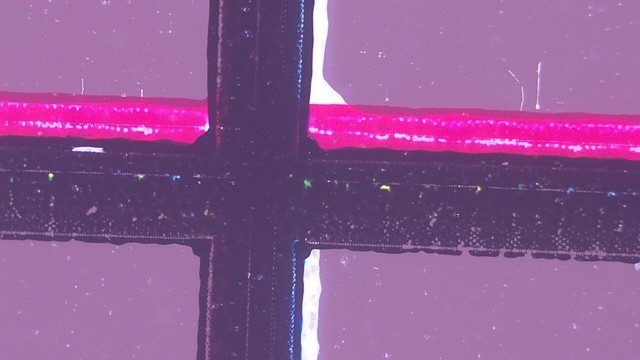

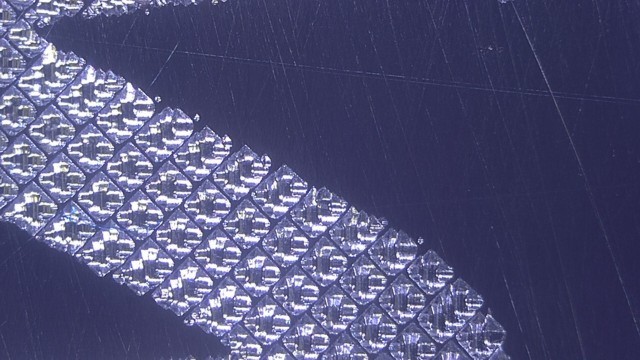

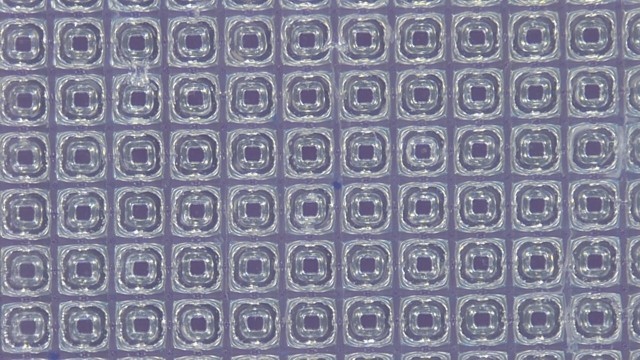

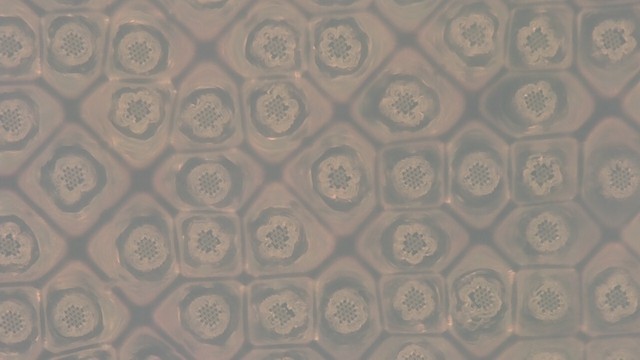

Immagini / Images
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
