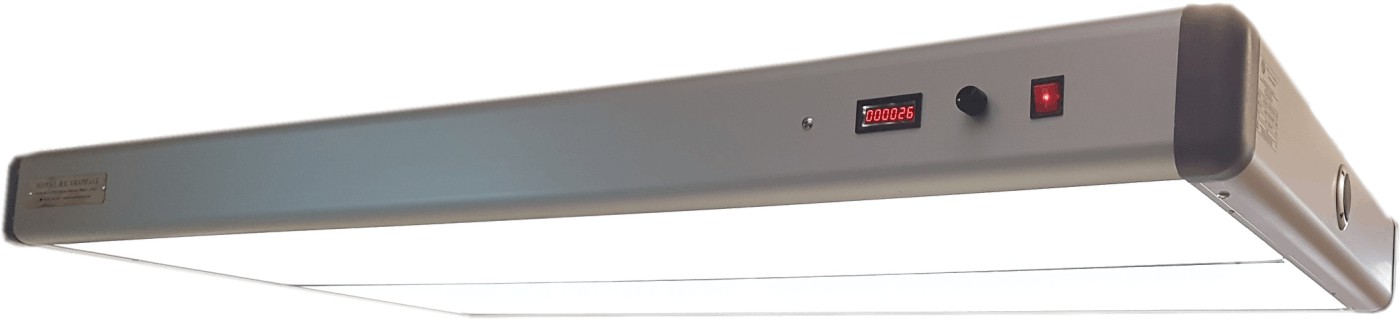

plafoniera 5000 °K / viewing station 5000 °K
Guarda il depliant generale (pdf) / View depliant (pdf)
Caratteristiche tecniche ( Tipo 1 ) / Technichal characteristics ( Type 1 )
Alimentazione : | Power supply : | 230 Vac - 50 Hz |
Potenza assorbita : | Power consumation : | ~ 150 W tipica / typical |
Caratteristiche plafoniera : | Viewing station characteristics : | 4 neon tube of 32 W each |
Temperatura di funzionamento : | Working temperature : | from 0 °C to 50 °C |
Dimensioni meccaniche : | Mechanical dimensions : | ~ 635 x 1230 x 90 mm. ( ** ) |
Caratteristiche tecniche ( Tipo 2 ) / Technichal characteristics ( Type 2 )
Alimentazione : | Power supply : | 230 Vac - 50 Hz |
Potenza assorbita : | Power consumation : | ~ 90 W tipica / typical |
Caratteristiche plafoniera : | Viewing station characteristics : | 4 neon tube of 18 W each |
Temperatura di funzionamento : | Working temperature : | from 0 °C to 50 °C |
Dimensioni meccaniche : | Mechanical dimensions : | ~ 635 x 620 x 90 mm. ( ** ) |
Caratteristiche tecniche ( Tipo 3 ) / Technichal characteristics ( Type 3 )
Alimentazione : | Power supply : | 230 Vac - 50 Hz |
Potenza assorbita : | Power consumation : | ~ 250 W tipica / typical |
Caratteristiche plafoniera : | Viewing station characteristics : | 4 neon tube of 58 W each |
Temperatura di funzionamento : | Working temperature : | from 0 °C to 50 °C |
Dimensioni meccaniche : | Mechanical dimensions : | ~ 635 x 1530 x 90 mm. ( ** ) |
( ** ) = Misure indicative / Indicative measures
Installazione tipica ( Tipo 1 ) / Typical installation ( Type 1 )
Pannello di controllo con contaore ( optional ) / Control Panel with timer counter ( optional )
Dimensioni / Dimension ( 150 x 110 x 70 mm )
VERSIONE ITALIANO :
La " PLAFONIERA A 5000 °K " emette una luce normalizzata e costante a 5000 °K , che permette l'uguale visione dei
colori in diverse condizioni ambientali.
La " PLAFONIERA A 5000 °K " è un sistema studiato per migliorare e monitorare la qualità della stampa, ridurre i tempi
di avviamento della macchina , e gli scarti dovuti all'impossibilità di controllo della stampa effettuata.
La " PLAFONIERA A 5000 °K " è stata dimensionata e studiata per consentire un semplice e immediato utilizzo da parte
dell' operatore.
La costruzione della " PLAFONIERA A 5000 °K " è stata concepita secondo le più recenti tecnologie al fine di venire
incontro alle richieste del mercato.
Le caratteristiche sopra citate descrivono la configurazione minima del sistema, esistono altre posibilità sia da noi già
implementate che eventuali richieste dal cliente.
ENGLISH VERSION :
The "VIEWING STATION 5000 °K" emit an normalized and constant light at 5000 °K, that allow the color vision with
different ambient condition.
The "VIEWING STATION 5000 °K" which has been studied to improve and monitor printing quality, reduce machine booting
times and discard due to impossibility of checking printing.
The "VIEWING STATION 5000 °K" has been designed using the latest technologies in order to meet market requirements.
The above-mentioned characteristics describe the minimum configuration of the system ; however, other possibilities exist both
already implemented by us and upon customer request.
